Platform · Connectivity
From modem to cloud, typed all the way.
All major modems 2G–5G + LPWA. Dual APN — production payload and management plane on the same module. eUICC Consumer (GSMA SGP.22) and eUICC M2M (GSMA SGP.02) in sealed enclosures. WiFi AP + STA dual-band with runtime backend detection. BLE central and peripheral (GATT server) roles. DHCP server and client per interface. Multi-protocol cloud uplink. Each layer typed, observable, and config-driven.
Key metrics
The numbers that size the stack.

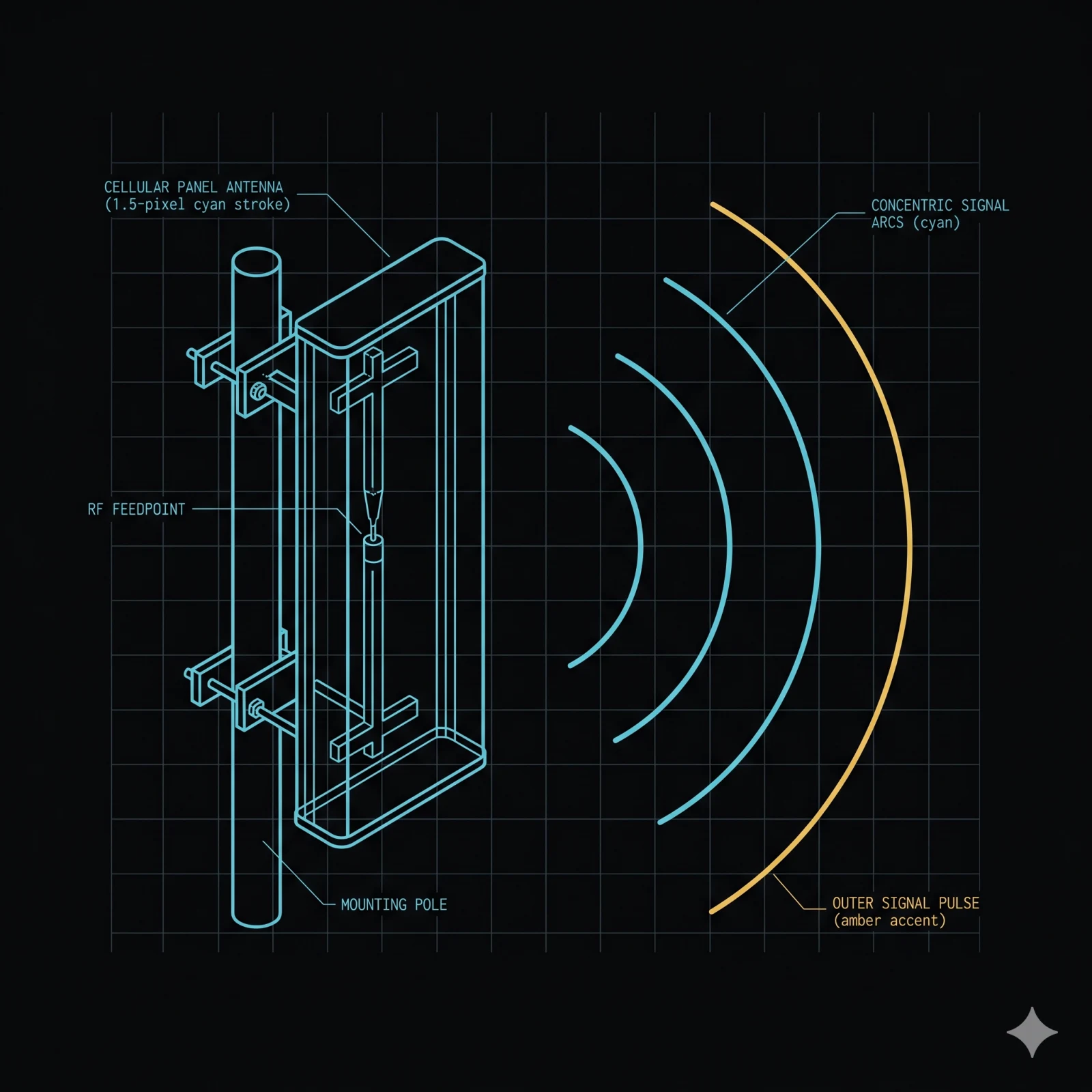

Cellular
All major modems — capability-first.
All major modem flavors, 2G → 5G + LPWA
The modem stack loads vendor libraries at runtime. Coverage spans 2G, 3G, 4G LTE, 5G, Cat-M1 (LTE-M), and NB-IoT — IPv4 and IPv6. Adding a new cellular module is a library swap plus a config update — no micro service recompilation.
Dual APN — production + management plane
Two active data bearer sessions on the same module. Customer payload rides the production APN while OTA, remote-diagnostic tunnels, observability, and device management ride the management APN — physically isolated at the carrier core. No back-haul VPN gymnastics.
eUICC Consumer + eUICC M2M in sealed enclosures
GSMA SGP.22 v2.2 eUICC profile management: download, enable, disable, delete, and recovery — without a separate eUICC management micro service. Conditionally compiled — adds no overhead on physical-SIM builds. The same binary ships to both hardware variants.
IP routing and NAT
IP routing, NAT/MASQUERADE, and IP forwarding are owned by the modem micro service via RoutingService — not a separate micro service.
Software-defined thermal management
For modules without firmware-level thermal zones, host-side polling with graduated actions: log → MTU reduction → radio off → shutdown.

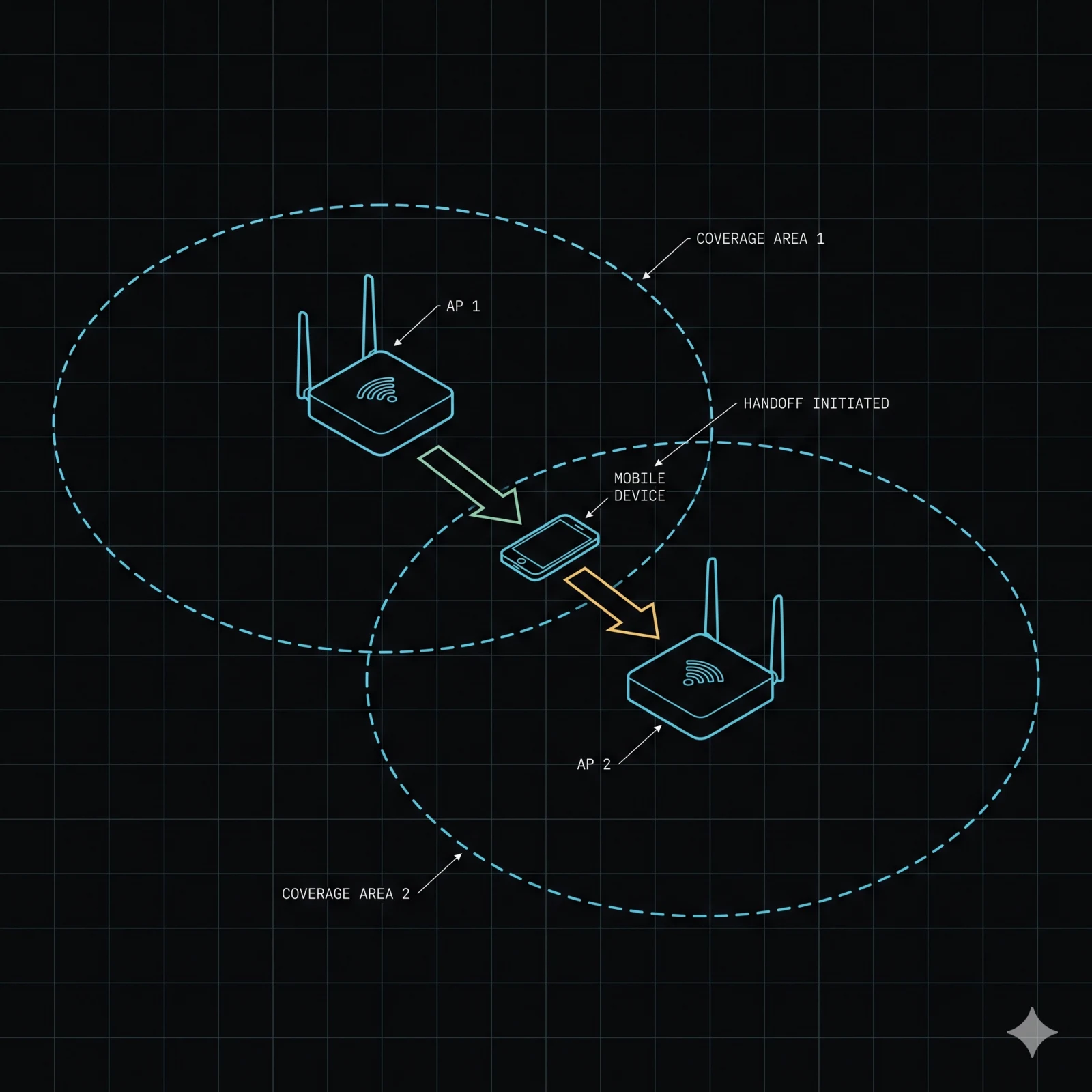

WiFi
WiFi — dual backend, one binary.
The WiFi micro service reads the device tree at startup and selects the backend without any
compile-time flag. AP and STA modes switch at runtime via SetMode .
| Backend | Modes | Frequency bands | ScanNetworks |
|---|---|---|---|
| AP+STA dual-band | AP + STA | 2.4 GHz + 5 GHz | Yes |
| AP+STA 2.4 GHz | AP + STA | 2.4 GHz | Not supported |
On platforms where WiFi and BT share one radio power rail, the Bluetooth micro service subscribes to power events and suspends/resumes the BT adapter automatically. BLE consumers need no WiFi coexistence awareness.
3-level self-healing
Escalates: L1 software restart → L2 radio power cycle → L3 full micro service restart. When L3 is exhausted the micro service stops petting the watchdog, triggering supervisor recovery.
7-method WifiService
SetMode, GetStatus, GetConnectedStations, StreamEvents, GetConfig, UpdateConfig, ScanNetworks — all typed over the MOS4 transport plane.
Runtime reconfiguration
UpdateConfig reconfigures a running AP without stop/restart. SetMode switches AP↔STA at runtime. No-code configuration via TOML policy.
See No-code engines for TOML-driven connectivity policy.

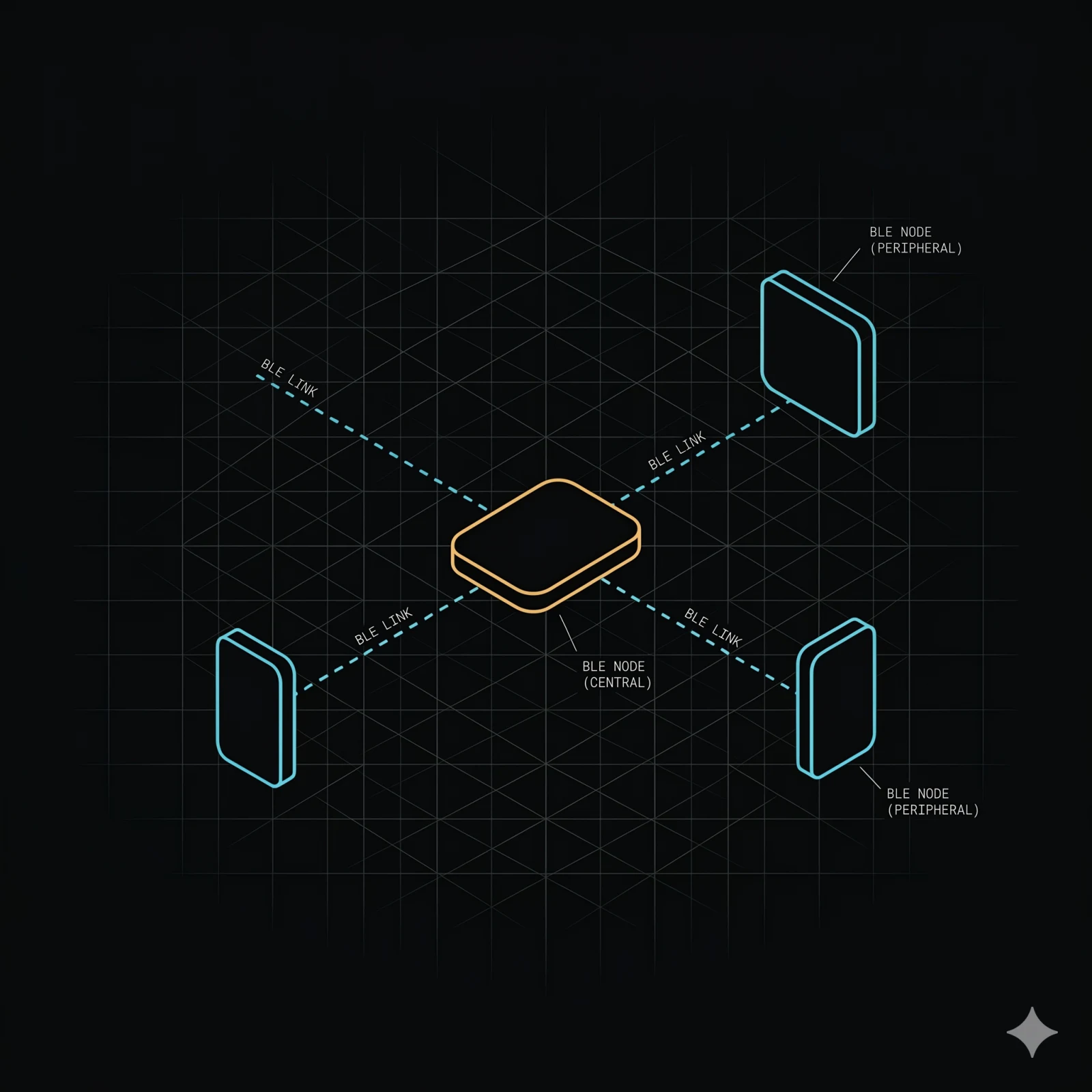

Bluetooth
Bluetooth — BLE central + peripheral, multi-chip.
All major Bluetooth families
Chip family auto-detected from device tree at startup. Multiple Bluetooth families supported — compute-class integrated and Wi-Fi-family co-processor variants. Classic BT and BLE both available.
Wake-on-BT (Wi-Fi-family co-processor)
On Wi-Fi-family co-processor chips, idle entry switches to an internal BLE mode. A BLE write to the wake characteristic triggers the wake pin; the host receives a wake event on the event bus — no polling required.
BLE peripheral — GATT server
A device acts as a BLE peripheral: it advertises a GATT server and accepts inbound commands, each authenticated with a signed token before it is acted on — and a command can wake the device from low power. Short-range control when no network is in reach.
DHCP
DHCP server and client per interface.
DHCP server and client instances run independently on any number of network interfaces simultaneously — WiFi AP server, upstream Ethernet client, and diagnostic interface on the same device at the same time.
Per-interface role
Assign server or client role independently per interface. WiFi AP interface runs a DHCP server; upstream Ethernet interface runs a client; diagnostic interface serves its own lease pool — all simultaneously.
8 RPC methods
Full typed API surface: start/stop server and client, update server config, query lease state, and stream events — all accessible without shell commands or config file restarts.
Runtime reconfiguration + lease persistence
UpdateServerConfig reconfigures a running DHCP server without stop/restart.
Lease state persists across micro service restarts via the Database Service.
Cloud uplink
Multi-protocol cloud uplink.
The communication gateway selects and routes tracking data to one or more cloud protocols simultaneously. MDI21, MQTT TR50, MQTT Munic, and MQTT generic are all available — per-track routing policies determine which protocol carries each data stream.
MDI21 binary protocol
A compact binary encoding (ASN.1 UPER) minimises payload size on constrained cellular plans. Relative timestamps and compact message IDs compress per-packet headers. Per-field recording policies (OnChange, Periodic, PeriodicOnChange, Manual) tune bandwidth and battery trade-offs. Persistent TCP/TLS connection with automatic retry on disconnect.
MQTT TR50
Production-grade TR50 JSON schema delivery over MQTT to TR50-aware cloud platforms. Configured alongside other protocols via the routing table; acknowledgment is tracked per-protocol so a retry targets only the protocol that has not yet confirmed.
MQTT Munic
Production-grade delivery on the Munic topic schema over MQTT into Munic cloud-platform deployments. Shares the same per-track routing and retry infrastructure as all other protocols.
MQTT generic
Production-grade generic MQTT — any standard MQTT client reaches MOS4 services via the in-process MQTT broker, no SDK adoption required. JSON payloads are transcoded at ingress; a retained service catalogue lets clients discover available services at connect time. See SDK for the developer integration pattern.
Protocols are routed per track ID. A track can fan out to multiple protocols simultaneously; retransmission targets only protocols that have not yet acknowledged. See the full catalog for the communication gateway micro service.
Field-level routing now lets the same fleet send overlapping schemas to different upstreams — for example, raw telemetry to one collector and a trimmed safety subset to a regulator endpoint — without duplicating data. Per-protocol field sets, activity deadlines, and slow-link scaling (down to CAT-M baseline) keep the wire honest under bandwidth pressure.
DNS
Minimal SRV resolver.
A lightweight DNS resolver handles SRV service-locator records (RFC 2782) with A/AAAA address
follow-up. It reads /etc/resolv.conf on every call — so nameserver changes from DHCP renewal or
modem bring-up are picked up without a process restart.
During modem bring-up, before a nameserver is configured, the resolver returns a typed error so callers implement correct retry logic rather than silently failing. The implementation is intentionally minimal — no Unicode internationalisation library required — which keeps the binary footprint low on modem-class hardware.

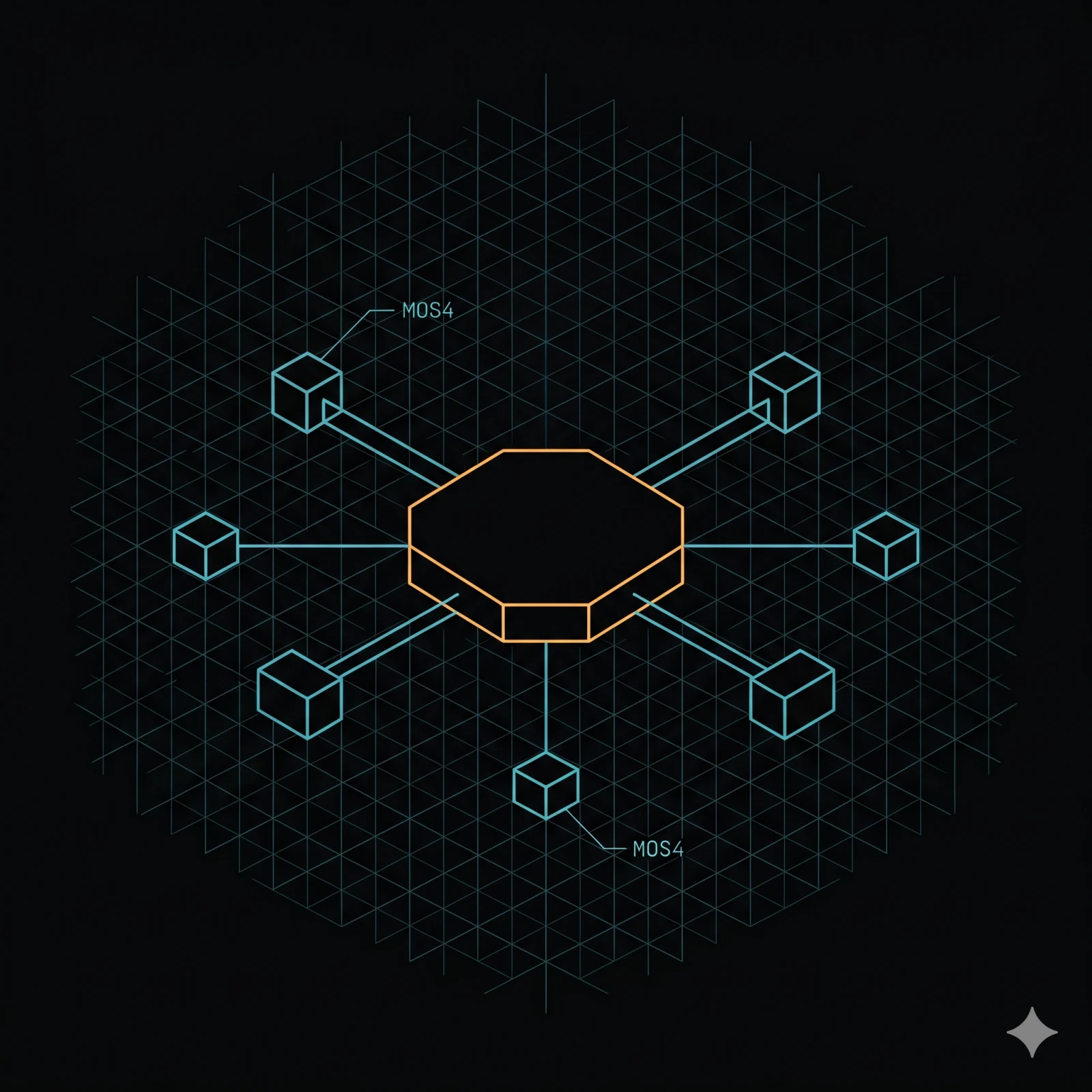

MQTT bridge
In-process MQTT broker — any standard client reaches MOS4.
An MQTT broker runs in-process — no external process. Transcodes JSON to the typed call format at ingress. Any Python, Go, C, or embedded-C client can call any MOS4 service without adopting the MOS4 SDK or .proto files.
Embedded broker
Runs in-process. No external broker process. No extra infrastructure dependency.
Service discovery
Publishes a retained service catalogue on connect. Clients enumerate available services without out-of-band configuration.
All service-call types
Routes to unary calls, server-streaming calls, and event bus subscriptions. Dual content-type: JSON and typed binary on the same topic namespace. See SDK for client examples.
FAQ
Frequently asked questions
-
Does existing MQTT tooling work with MOS4 services?
Yes. MOS4 embeds an MQTT broker in-process — no external process. It transcodes JSON payloads to the typed format at ingress and routes to any MOS4 service as a unary call, server-streaming call, or event-bus subscription. Any standard MQTT client works without adopting the MOS4 SDK.
-
Which cellular standards are supported?
All major cellular standards — 2G, 3G, 4G LTE, 5G, Cat-M1 (LTE-M), and NB-IoT — are supported via runtime-loaded vendor libraries. Adding a new cellular module requires a matching vendor library and a config update — no micro service recompilation.
-
How does WiFi backend selection work?
The WiFi micro service reads the device tree at startup and selects the dual-band hostapd path or the 2.4 GHz esp-control path without any compile-time flag. The same binary runs on both hardware variants.
-
Is eSIM supported in sealed enclosures?
Yes. The modem stack implements eUICC profile management (GSMA SGP.22 v2.2 Consumer; GSMA SGP.02 M2M) for eUICC profile download, enable, disable, delete, and recovery. Conditionally compiled — adds no overhead on physical-SIM builds.
-
How does BLE chip detection work?
The Bluetooth micro service auto-detects chip family from the device tree at startup. Multiple Bluetooth families are supported — integrated compute-class chips and Wi-Fi-family co-processor variants — without recompilation.
-
Which MQTT version does the in-process broker use?
The MQTT version is not disclosed publicly. The broker presents a standard MQTT surface — any standard MQTT client connects without SDK adoption.
